Fluxia 2.4 GHz to 0 - 10 V Dimming Set

Description

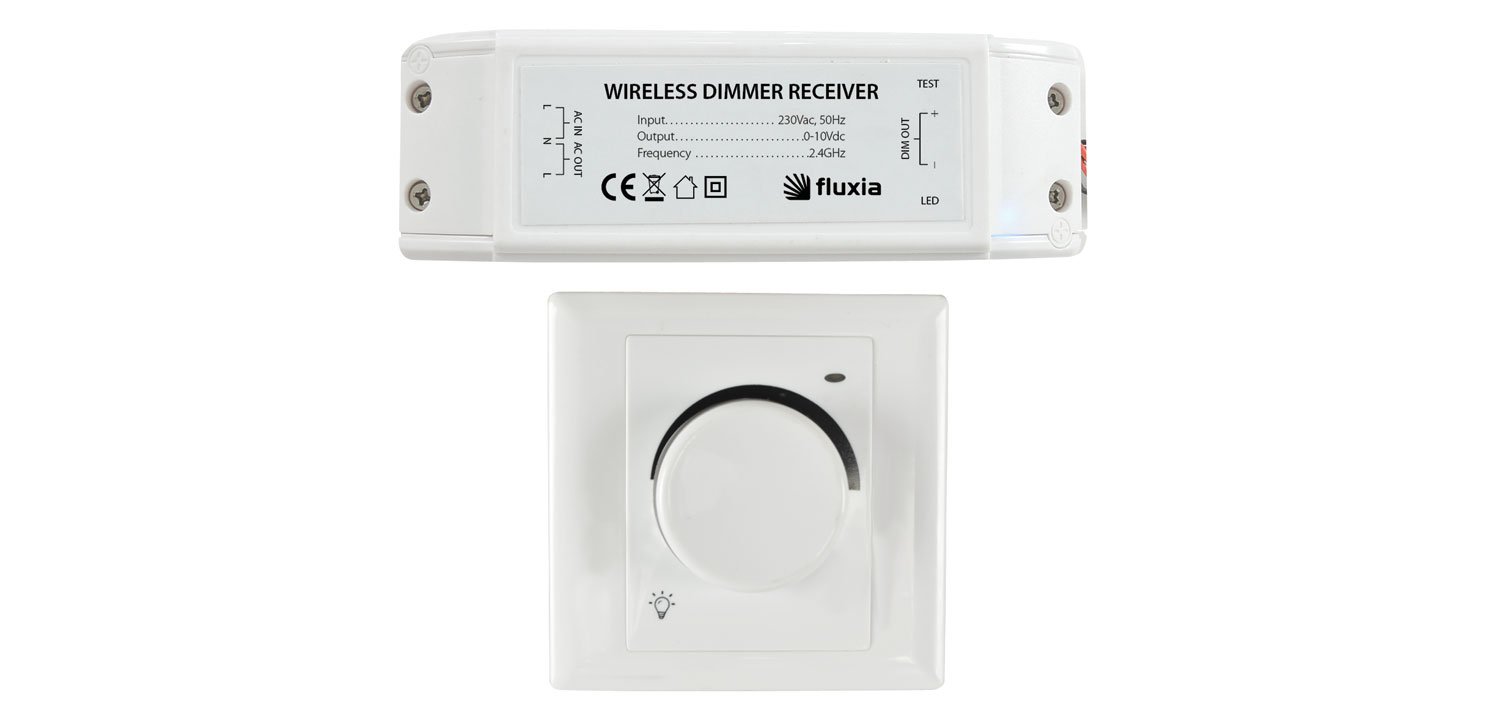

Product Description A wireless control kit for 0-10V dimmable lighting products. This kit includes a wall mountable 2.4GHz rotary dimmer transmitter and a mains powered 2.4GHz receiver with 3 outputs. Allows easy manual dimming control of compatible ceiling light panels without the need to install additional wiring. - Mains powered wall control transmitter and receiver - LED dimming status indicator - Compatible with standard 0-10V dimmable luminaires - 10V output can be paralleled for controlling up to 10 LED lights - Multiple receivers can be paired to one wall control for larger schemes Technical Data Power supply : transmitter : 230Vac, 50Hz Power supply : receiver :230Vac, 50Hz Carrier frequency :2.4GHz Wireless control protocol :ZigBee 2007 Pro (IEEE 802.15.4) Output connection :3 x DC5521 jack (expandable up to 10) Output :0-10Vdc, 20mA Relay :Live switched output (receiver) 7A Dimensions : transmitter :86 x 86 x 48mm Weight : transmitter :140g Dimensions : receiver :140 x 45 x 28mm Weight : receiver :170g Box Contains Fluxia 2.4Ghz To 0-10V Dimming Set
