Product introduction：
The float level switch is a liquid level control device with simple structure and convenient use. It does not need to provide power supply and has no complicated circuit. It has the advantages of smaller size and longer working life than general mechanical switches. Float ball and circlip are all made of PP material, which can be used for any liquid or pressure and temperature. It is widely used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. widely used.

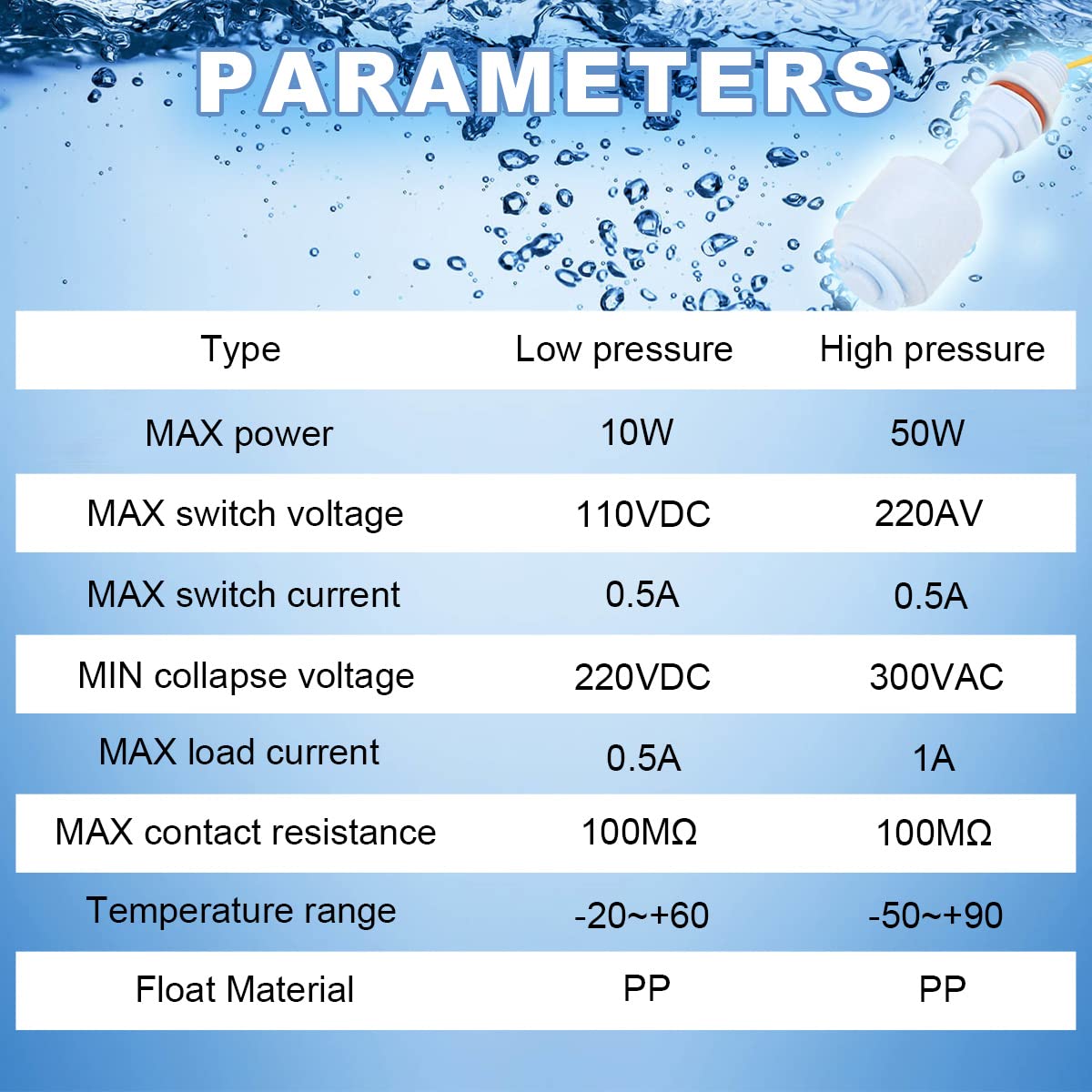

Specification:
Model DP3500

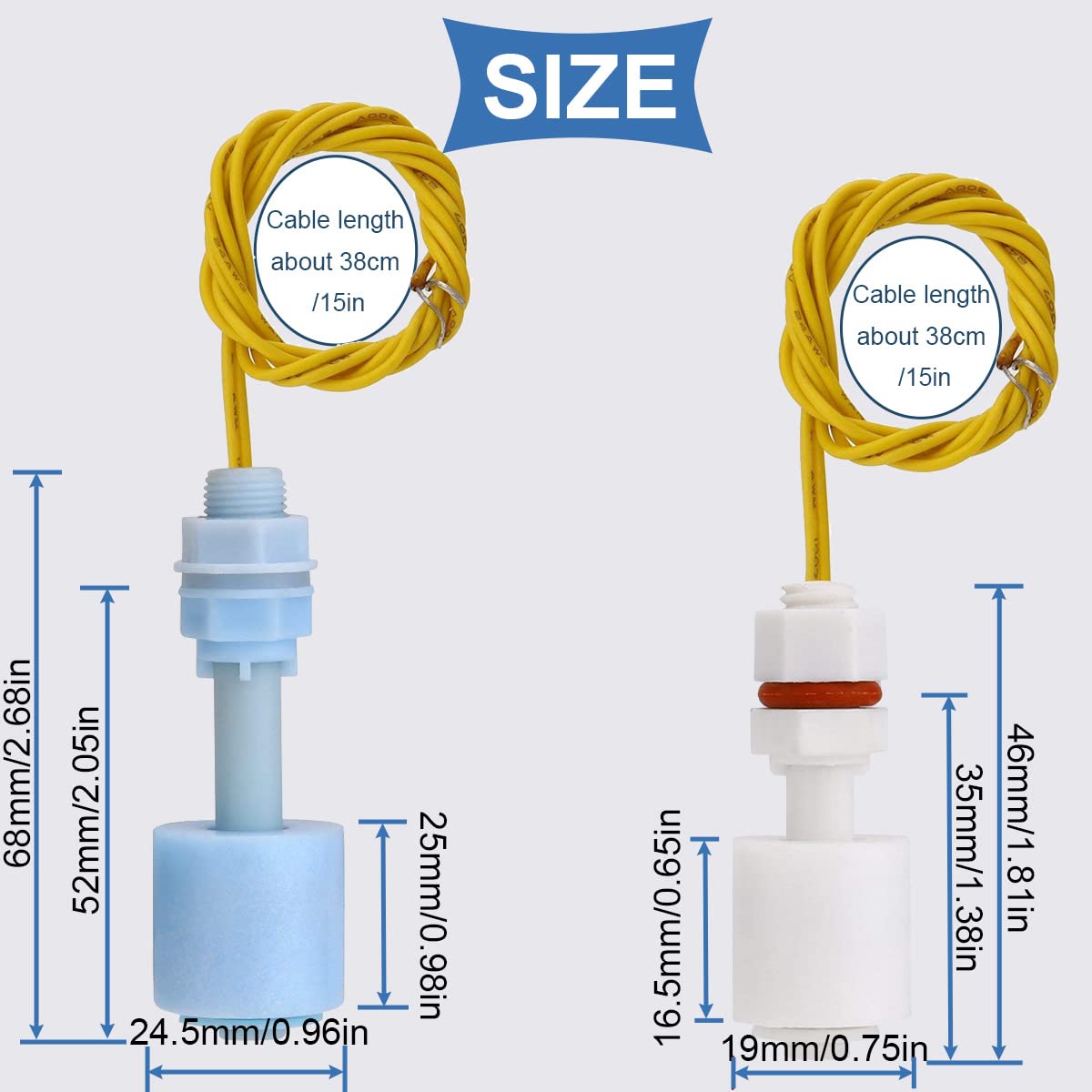

Cable Length : 38cm / 15"；Switch Body Size: 45 x 17mm / 1.8" x0.7" Thread Dia (Approx.): 13mm / 0.5"
Model DP5200
Cable Length : 39cm / 15.3"；Switch Body Size: 65 x 22mm / 2.6" x0.87" Thread Dia (Approx.): 16mm / 0.63"
Max Contact Rating: 10W
Max Switching Voltage: 220V
Max Switching Current: 0.5A
Max Breakdown Voltage: 220VDC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating:-10~+60°
Float Ball Material: P.P
Float Body Material: P.P

Features:
1.Small size, simple wiring, low power consumption.
2.Strong anti-interference with high stability.
3.PP material has excellent acid and alkali resistance.
4.Easy to install, high sensitivity, convenient to use and long service life.

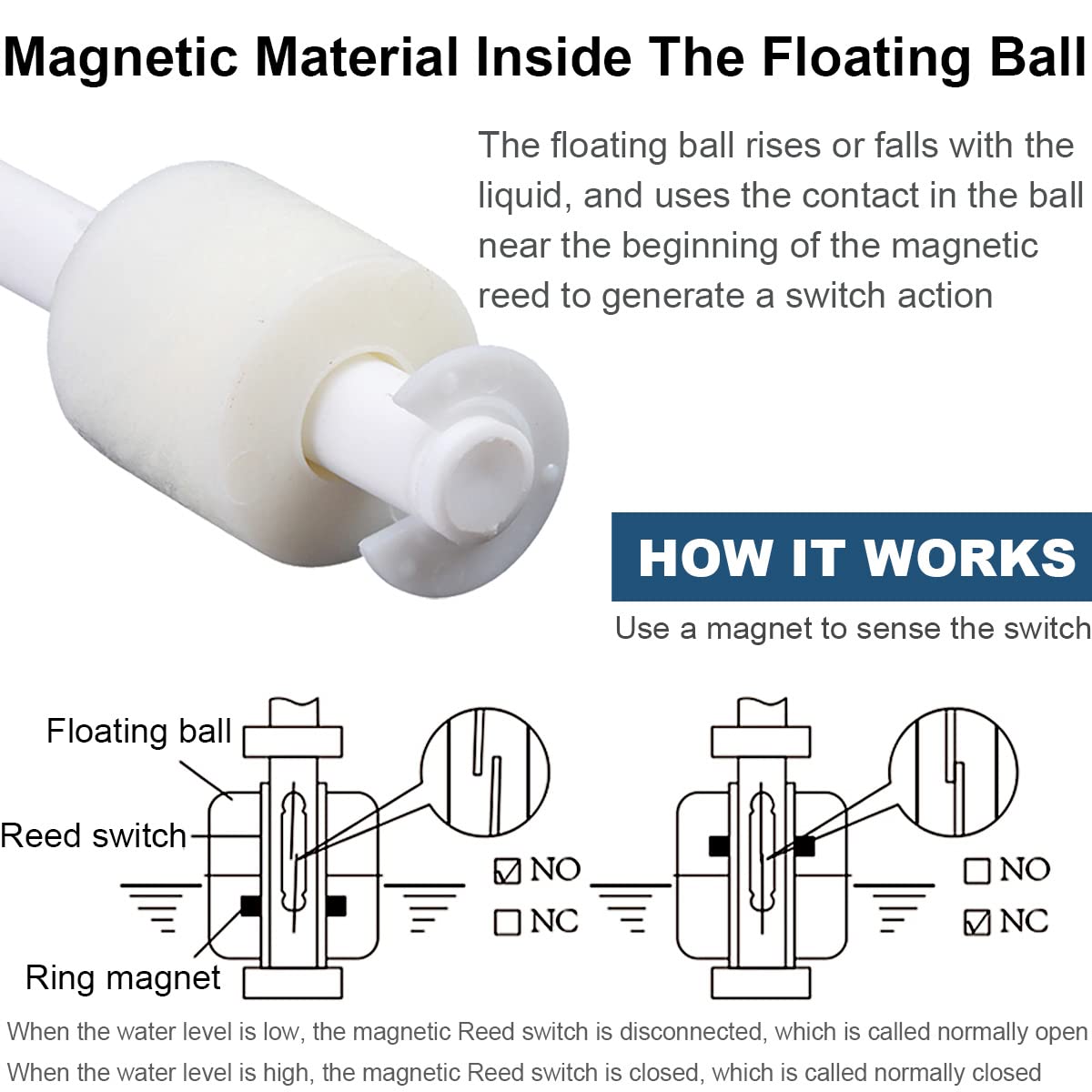

5.It can be easily converted from normally open to normally close by inverting the float.
6.The power of the control object must not be greater than the signal load capacity.
7.0The ambient temperature is not lower than -40 °C. Not higher than 80 ° C.

Package includes:

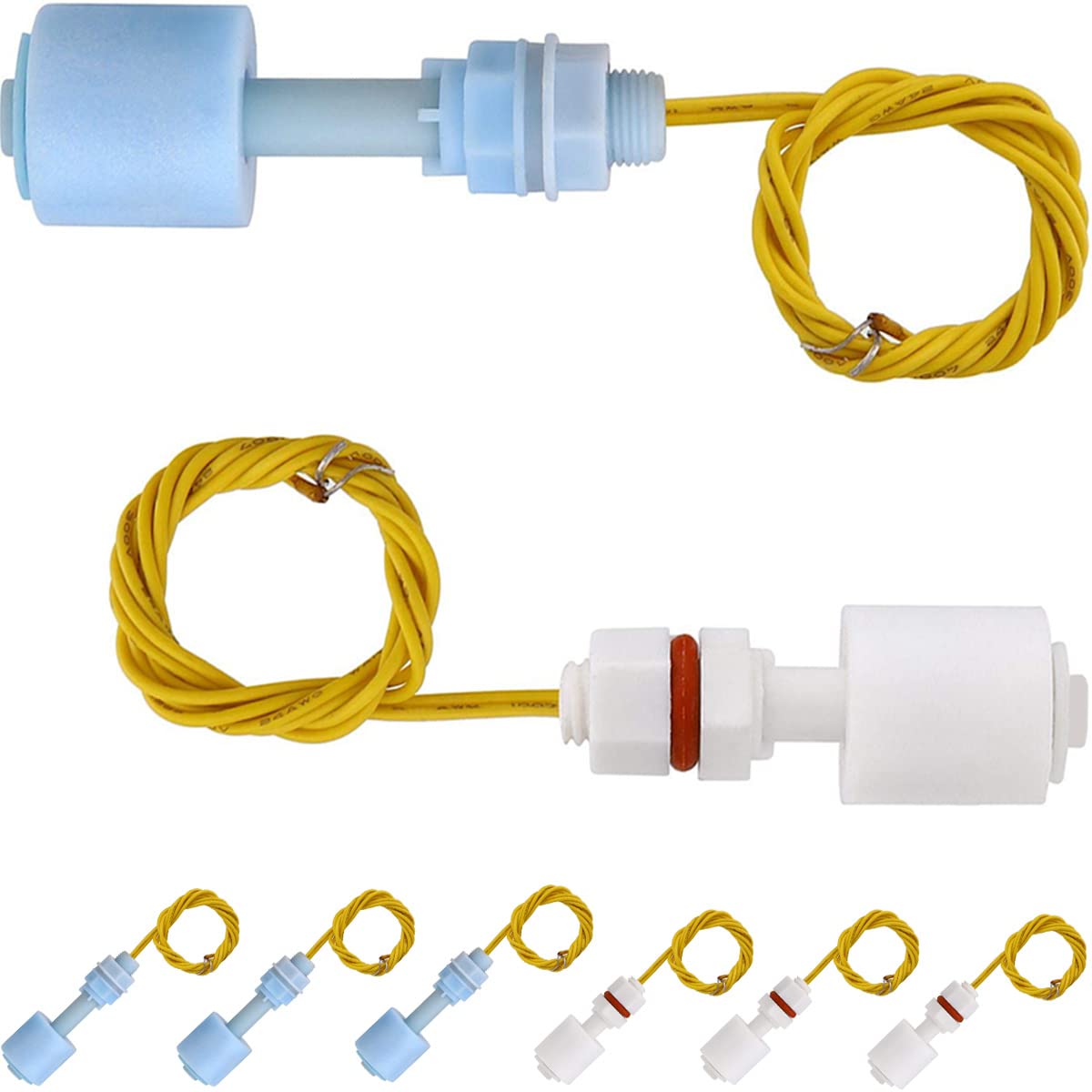

3 x Water Level Sensor PP Float Switch DP3500
3 x Water Level Sensor PP Float Switch DP5200

Manufacturer	DAOKAI
Part number	WE-DA-122
Item Weight	20 g
Package Dimensions	5 x 2 x 1 cm; 20 g
Item model number	WE-DA-122
Colour	Float Switch
Voltage	220 Volts
Included components	3 x Water Level Sensor PP Float Switch DP3500, 3 x Water Level Sensor PP Float Switch DP5200.
Batteries included?	No
Batteries Required?	No

DAOKAI 6Pcs Float Switch PP Material Liquid Level Controller Liquid Water Level Sensor Vertical Float Switches, for Aquarium Pump Control Liquid Controller Two Model DP3500 DP5200
