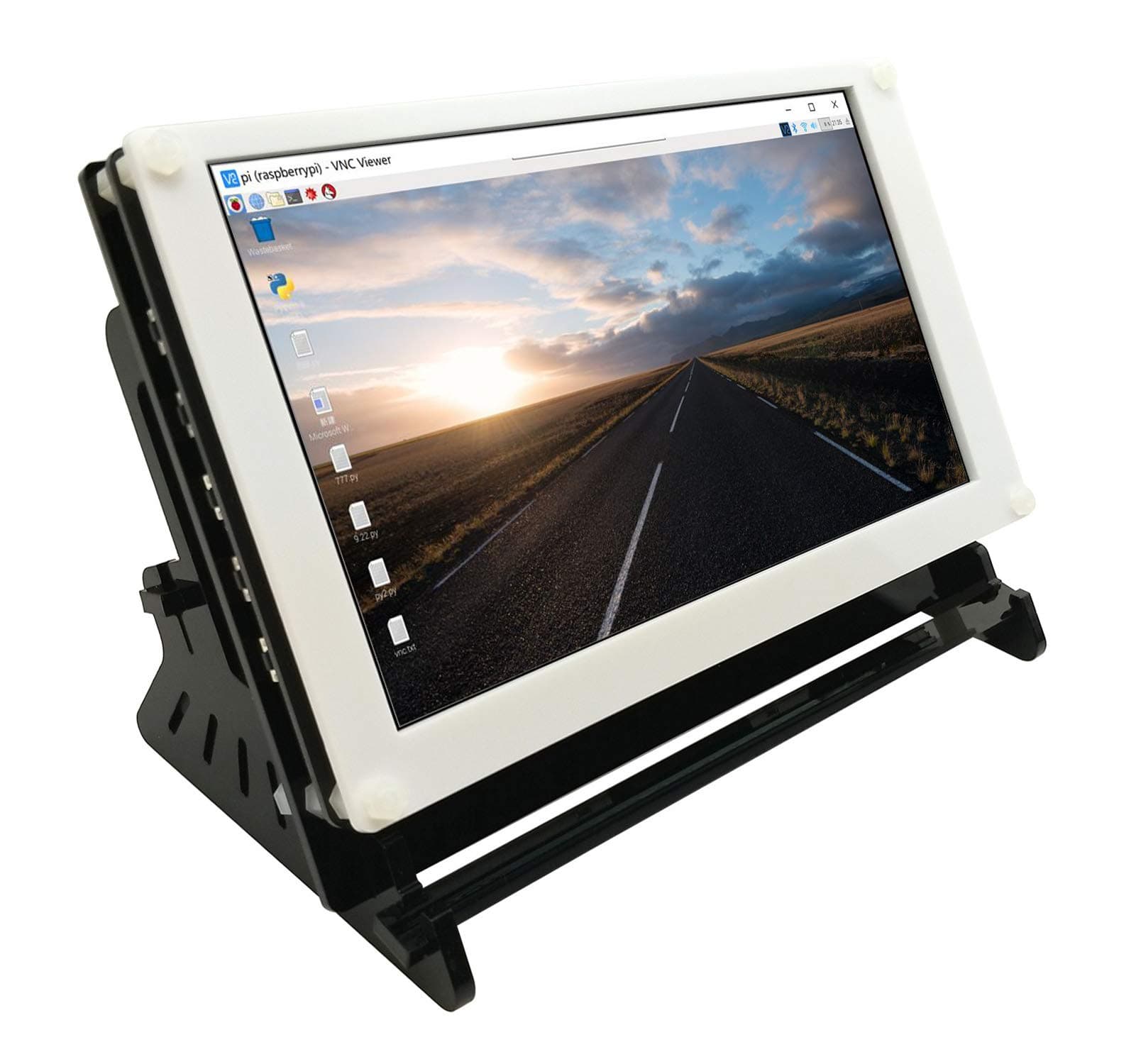

7 Inch Raspberry Pi Touchscreen Display-1024 * 600 IPS Screen,HDMI Input,Power And Touch Via USB

Description

Feature: This Is The Update Version 7 Inch HDMI Touch Screen Specily Designed For Raspberry Pi,It Have Following Feature: 1、Support Raspberry Pi： Raspbian, Ubuntu, WIN10 IOT, Single Point Touch Support No Driver Required,The 7 inch Touchscreen Display Compatible With Raspberry Pi 3 Model B/Raspberry Pi 3 Model B+/Raspberry Pi 2 Model B/Raspberry Pi Model B+/Raspberry Pi Model A+. 2、IOS: Drive-Free, Touch Panel Function Compatible,Support Single Point Touch. 3、Windows: Windows 7/8/ 8.1/10,Support 5-Points Touch And Driver Free,Can Work With Laptop And Windows MINI PC. 4、Power Via USB C Port,More Stable. 5、Building Speaker Port（51146 interface,1.25mm,4Pin). 6、Multi Languages OSD Menu, Power Management, Brightness/Contrast Adjustment, Etc. How To Configur Raspberry Pi Resolution: Step 1: Please freely select and download the LCD driver image from the following link: https://www.raspberrypi.org/downloads/ Step 2: Please format the SD card with SD Formatter software. Step 3: Please use the software Win32 Disk Imager to write the decompressed image file to the TF card. Insert the card into Raspberry Pi, and after starting up, please do the following operation. Step 4: Change the config.txt file max_usb_current = 1 hdmi_drive = 1 hdmi_group = 2 hdmi_mode = 1 hdmi_mode = 87 hdmi_cvt 1024 600 60 6 0 0 0 Step 5: Save the changed document, insert the SD card in Raspberry Pi, and restart it. Lcd Panel Features: Panel Type：TFT-LCD Resolution：1024*600 Panel Size：7.0 Inch Display Dimension：182*107*6 Mm Brightness：350cd/M2 ( Typ.) Refresh Rate：60Mhz Power In：5V Package Listing: 1、7.0 Zoll Touchscreen * 1 2、Acrylic Case * 1 3、Micro USB Cable * 1 4、USB A To USB C Cable * 1 5、User Guide *1
