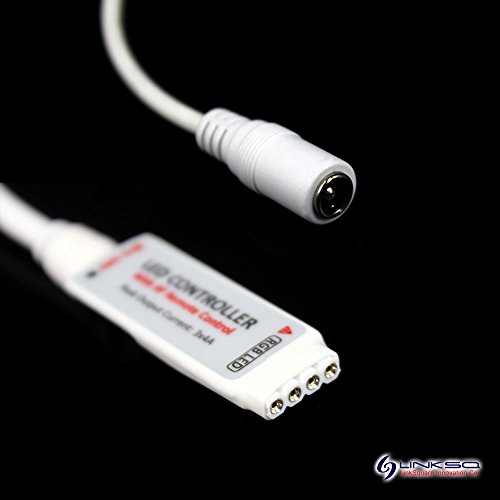

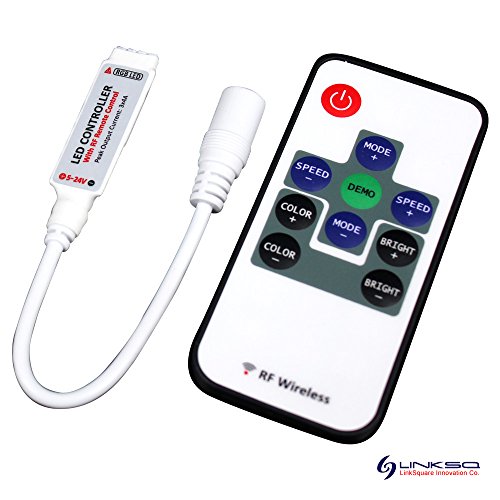

LinkSquare 10 Key RF Remote Control + DC5V / 12V / 24V 12A 288W RF Mini Controller Dimmer for RGB LED SMD Fairy Light Strip
Description
- The radio frequency and the remote control are easy to use and does not react too strong nor too weak to inputs and signals.
- Suitable for all DC 5V 12V 24V 5050/3528 RGB LED Strip

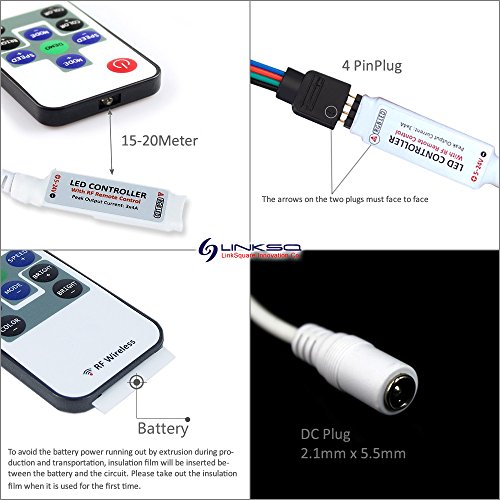

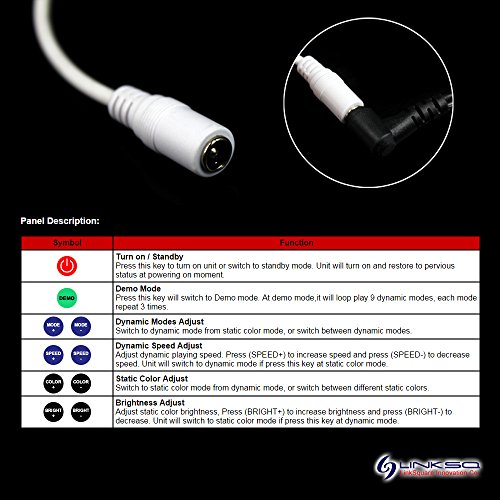

Technical Parameters: 19 Dynamic Modes 20 Static Colors 256-Grade PWM Speed Adjustable Brightness Adjustable Card Type Remote Ultra Slim Design Demo Mode 1 to 1 Remote Paired Auto Save Function Remote Control: Key Number: 10 keys Controllable Distance: 15-20m Remote Control Way: RF Working Voltage: 3VDC Battery Types: Li Battery, CR2052 Controller: Supply Voltage: DC 5V-24V Input Current: 1-12A Maximum Output Current: 4A x 3CH 12A Maximum Output Power: DC5V 60W / DC12V 144W / DC24V 288W Control Method: RF Color Modes: 19 Modes Connection Mode: Common Anode Dimming Method: PWM Operating Temperature: -20ºC ~ 60ºC Ingress Protection Rating: IP20 Identification: CE & RoHS Dimension: Remote Control: 40mm(W) x 87mm(L) x 7mm(T) RF Controller: 13mm(W) x 38mm(L) x 4mm(T) Note: To avoid the battery power running out by extrusion during production and transportation, insulation film will be inserted between the battery and the circuit. Please take out the insulation film when it is used for the first time. Delivery Includes: 1 x 10 Keys RF Remote control 1 x RF Controller (RF Receiver) 1 x English Manual
