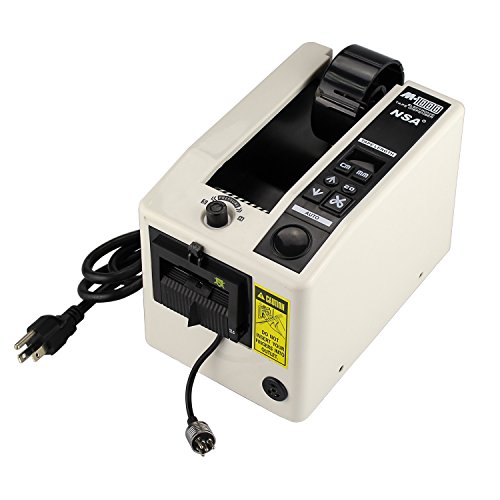

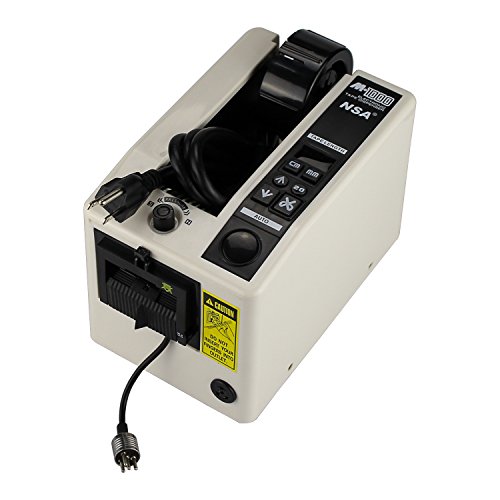

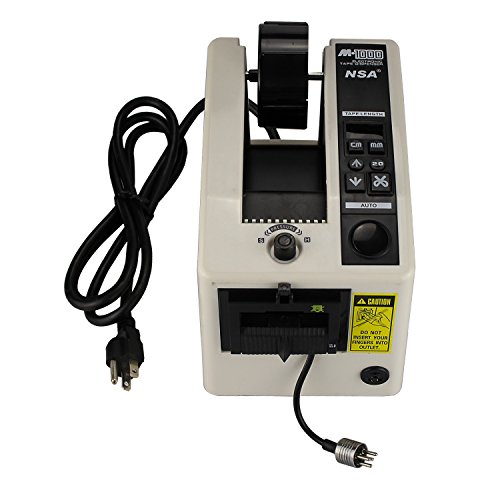

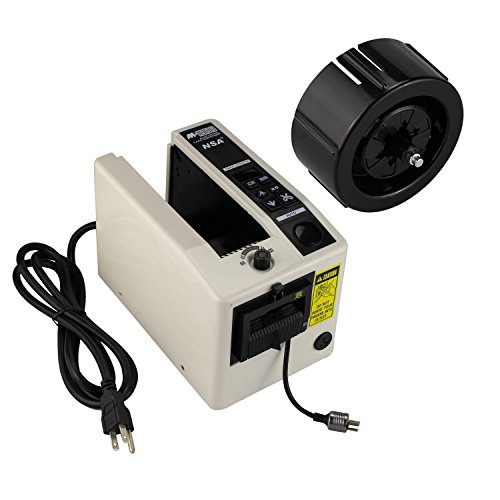

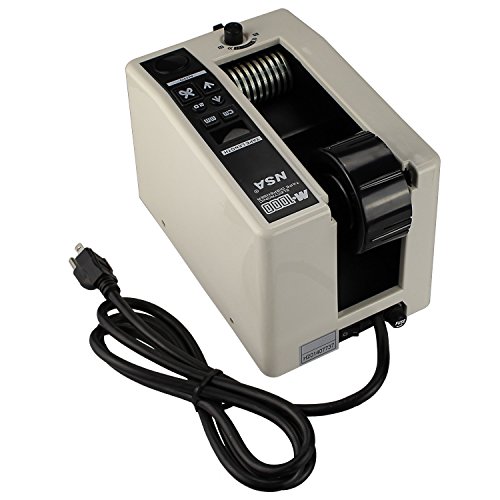

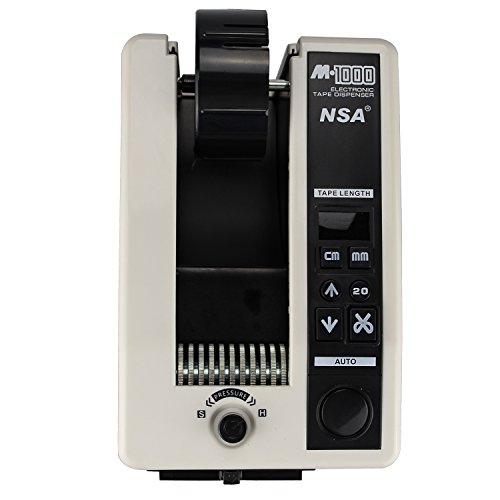

Tape Dispenser M-1000 with Auto Feed Cutting Masking Tape Dispenser Machine

Description

Parameters Item: M-1000 Material :ABS ,br>Power AC100V 60H or 220v 50Hz Tape cutting length :20-999mm Tape cutting width :7-50mm Net Weight :2.8kg Dimension:137(W)*245(H)*150(D)mm Tape Max diameter :180mm About Tape Dispenser M-1000 It automatically advances and cuts tape in medium to high production applications Cuts tape from 0.28 to 2" (7 to 51 mm) wide, in lengths from 0.79 to 39" (20 to 999 mm) Length of cut and automatic feed can be set with LED display and manually overridden with push buttons Feed and cut actuated by photo sensor or by manual push button Pressure roller is adjustable for different thicknesses of tape.It cuts and advances predefined tape lengths and is suitable for medium to high production of repetitive taping in industrial applications. The dispenser with an outside roll diameter up to 7"/178 mm. Using the LED display, feed and cut can be set to automatically advance and cut the material. The photo sensor detects if there is tape at the outlet for accurate and consistent feeds and cuts. The feed and cut can also be operated manually with a push button. Preset lengths of 0.79 to 39" (20 to 999 mm) can be overridden for a custom cut, and then returned to the auto feed settings. Feed roller pressure can be adjusted for tape thickness. The guillotined cut provides a straight edge to the dispensed tape. Estimated blade life is about 200,000 cuts, depending upon the type of tape material. Cut length tolerance is + or - 0.04"/1 mm. The 3-in-1 core holder allows a range of tape roll sizes to be mounted.It has a steel frame for dura cabinet made from flame-retardant, anti-static composite.It suit for industrial use such as manufacturing, assembly, and packaging.
