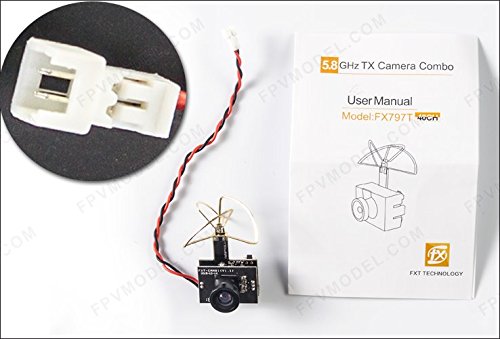

FX797T Micro FPV Camera & 5.8GHz 40CH 25mW VTX Transmitter Combo

Description

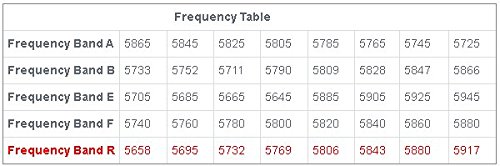

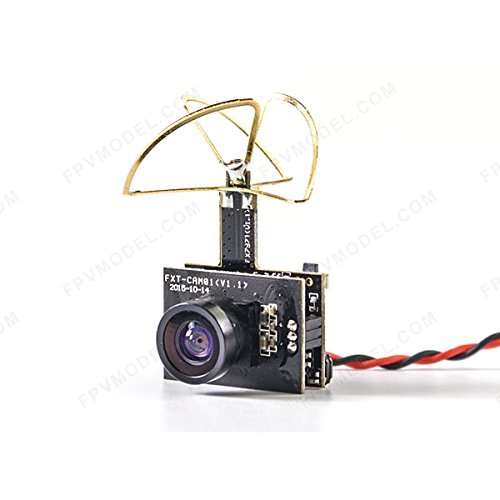

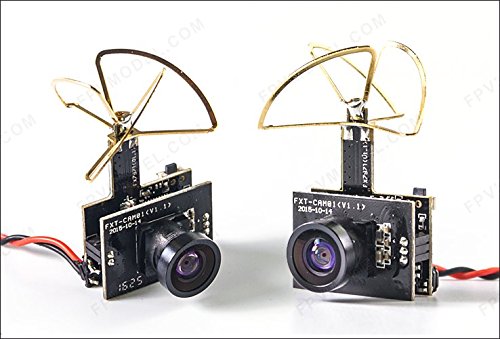

Due to their size and adaptability, the FX797T micro camera and video transmitter has taken the FPV world by storm. This fabulous little piece of tech allows the user to install on the smallest of builds and get reception up to 100 meters in range. The design of this camera/vtx is intended to be small enough to mount on almost any micro flyer out there and it has found it¡¯s home in the Tiny Whoop/Blade Inductrix quad to be it¡¯s calling. Description: Item Name: FX797T Micro FPV Camera & 5.8GHz 40CH 25mW VTX FX797 Output power: 25mW Input power: 2.5¨C5V Current Consumption: 230mA AV Output: VGA 640x480 PAL/1VP-P Camera resolution: 600TVL Min illumination: 1 lux Field of view: 120¡ã viewing angle Antenna dimensions: 20mm X 25mm diameter Antenna: 3 lobe right hand circular polarized Video output: NTSC Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5658-5917MHz Bands: see below channel table. Push button operation, long press for band, short press for channel Specs: 2 Row LED indicators, 5 LED for band, 8 LED for channel Size: 17x17.5x12.5mm Weight: 3.4g Features: Micro Size and Light weight Easy installation for racing drone Five bands 40 channels with Raceband Button Control Instead Of Switch Included: 1 x FX797T 5.8G 25mW Transmitter With 600TVL Camera and Antenna 1 x manual
