Picoino Plug and Play (Solderless) Pro Mini 3v / 3.3v, 8mhz High Current Arduino Compatible Developer Board
Description

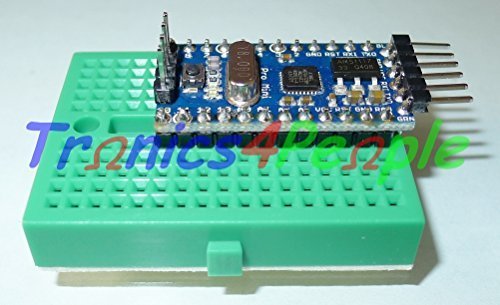

- You need a longer life battery application? This is it! You get: Picoino Pro Mini developer board, 170 breadboard, instructions, link to our usb-driver download section.
- Comes with our detailed instructions. Can be used with the Arduino IDE! Together with our USB/FTDI module you will get a better UNO replacement. You can use the USB module just for development but don't need it for use! Results: Lower current, 2 more analog pins, smaller, more power, more flexible!

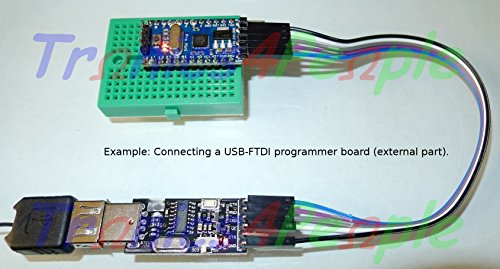

- Picture with example is just for your information. External parts don't come with it, but you may buy the USB/FTDI breakout board from our store.
- Is Arduino compatible but has no usb interface directly on board (can be connected via FTDI pins - see example) and can be used for battery applications, because no usb = less current!
- The microcontroller of our board is an ATmega328P-mu.

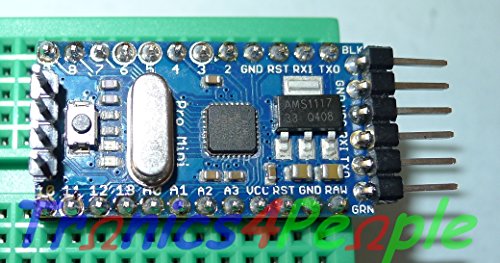

The microcontroller of our board is an ATmega328P-mu. The microcontroller of the original ARDUlN0 pro mini is an ATmega328P-AU. The performance and function of these two IC is the same because of the same core while the only difference is the smaller size. The power IC of our board is the AMS1117. The max input voltage of this IC is 15V DC while the original board is 12V. The max output current of this IC is 800mA* while the original board is 500mA. It can be used for more devices as power supply. Some simple applications can operate without any other power IC. * The max output current is influnced by the working temperature. If necessary, add a heatsink. There are 20 pins that can be used as digital I/O. There are 8 pins that can be used as analog inputs. Summary: Microcontroller ATmega328P-MU Operating Voltage 3.3V or 5V via VCC pin Input Voltage 2.7** -15 V*** Digital I/O Pins 20 Analog Input Pins 8 Clock Speed 8 MHz ** below 2.7V unable to work *** below 5V able to connect with VCC pins above 5V must connect with RAW pins Dimensions: 33.3 * 18.0 (mm) The color of the breadboard you get is random.
