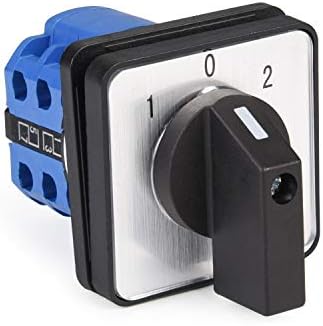

APIELE Changeover Selector Switch 3 Position 440V Universal Rotary Cam Selector (20A 8 Terminal)

Please see additional comments concerning reliability at the end of the review.This is a solid multi-pole transfer switch. I am actually using it to switch a power line filter in and out of the primary shore power circuit in a camper. The filter unexpectedly trips some ground fault breakers. So, there are instances when the filter needs to be bypassed. Since both sides of the filter need to be removed from the circuit this switch allows an elegant solution.You are getting a lot of switch for your money here. It seems well made and is easy to install. As with many Chinese made items, especially those selling at low prices as compared to market, it lacks any instructions or schematics at all. So, you must rely on those you find online or in the product's ad. In this case, as the title of the review alluded, the wiring diagram/switch schematic shown in the product photos is incorrect, depicting a 16 pole switch, not the 12 pole switch you are buying. The description of the product was correct. But, I needed the 16 Pole, but with four poles unused in my design, not in linear pairs. I initially ordered the wrong switch as I designed my circuit based on the schematic provided. It's my mistake, but don't make it yourself. Several suggestions I would make to the seller would be to show the width of terminals which can be used and size of the securing terminal screws. I am not a fan of poking high amperage wires under a securing plate and tightening them into place. I'd prefer to use spade or loop lugs for a more secure connection. To use those it would be useful to have the this information added to the dimensional diagram. A mounting template would also be useful, as to mount the switch neatly you will need to make one yourself.Additional comments added after several months of use:My transfer function ceased to work in one of the positions despite having been tested good before installation. Testing revealed that one of the selected closed pole positions was not conducting. As I had two spare poles for that side, I moved the function to a spare and was back in business. However, I initiated a return to swap out the "faulty" switch. I ordered this one from another seller, though it was obviously the same Chinese switch. My initial seller was out of stock. When it arrived, before installation, I tested all of the poles. One was not conducting. Playing with the switch I found that if I switched it back and forth a number of times it started working and seemingly kept working after that. So, I went back to my installed "bad switch." I did the same, switching it back and forth a number of times. The "bad" pole started working. Because this seems to be a peculiaritity of this switch I decided to keep the installed switch, functioning on the backup pole. My bad pe now working, I still have a spare. It is a very complicated installation/wiring and a real job to change out, so, without any advantage I'll leave well enough alone.I do not know why I have encountered the intermittent pole issue. Two switches out of the box like this seems to be a trend. I still think this switch is a good value, considering the very low cost, if it will function reliably after it's "loosened up." But, we shall see.

I purchased this 16 terminal 3-position switch to replace one on an older Chinese mill/drill. With sixteen terminals plus additional jumper wires between some of them, careful marking of the wires is very necessary. I had no issues with the quality of this switch and it does its job just fine. Good value for the money. Also note this was the 15A version I got after returning the 63A version because a) tge 63A came broken (why Amazon insists on pinching pennies by using bags instead of boxes for a primarily plastic item like this is ridiculous to me) and b) the 63A is a very large switch. Be sure to check the dimensions.

This is a little deep to fit in a normal double gang box. The switch it self is medium quality. Definitely good enough but not ‘industrial quality’ by any stretch.

Well built and solid. A little difficult to figure out the contact sequence but otherwise a good choice for a DPDT switch.

Curiosity got the best of me, and I unscrewed the main switch binding pieces... The whole thing shot springs and contacts everywhere and literally just crumpled in my hand. Each terminal is the same design, and piggybacks on the one below. As a lifelong mechanical engineer, I still have no desire to put it back together lol, I'll pay another 15 bucks.For what it's worth, the design was very basic, and a cam simply pushes the terminals. The contacts looked a bit small to me, at about 1/8 inch, but I have no knowledge on that.Edit, I got the thing back together, it's actually very straight forward. I tried to swap parts between two switches to create a custom switch, but it's worth noting that the gears have different tooth counts.... Most likely for QC in a factory with lots of parts. See picture: 180 and 90 degree switched.

Wire terminals too small for my wires, stranded 10 gage tinned copper. Also, it’s a puzzle figuring out how to install: piece that holds faceplate is on knob side (outside) and switch goes “inside”, but you’ve got to remove faceplate to put screws in (good luck figuring out how to get the faceplate off). The comments in other post regarding the knob (4 pieces) and the captured nut in the knob … that’s real ! This won’t install in my application, replacing a 24 year old BlueSea that burnt a contact. I ordered another switch with higher amp rating hoping screw terminals will be suitable for my wire.

Reliable so far. Used as a selector for shore power vs generator power in a small RV conversion.

I use this switch for a single phase reversing 110 volt motor. It was a challenge figuring out how to wire it but I finally got it! It works great!
