Voltage Amp Panel Meter, Droking Digital Ammeter Voltmeter Multimeter Wireless DC 0-100V 0-100A Volt Current Power Meter AH Time Watt Hour Capacity Tester Battery Charge Discharge Monitor Gauge
Description
- MEASURING RANGE --- voltage 0~100V; current 0~100A; temperature -20~120℃; capacity 0%~100%; power 0~200kW; capacity 0~2000kAh; energy 0~4000kWh; time 0~99 days.

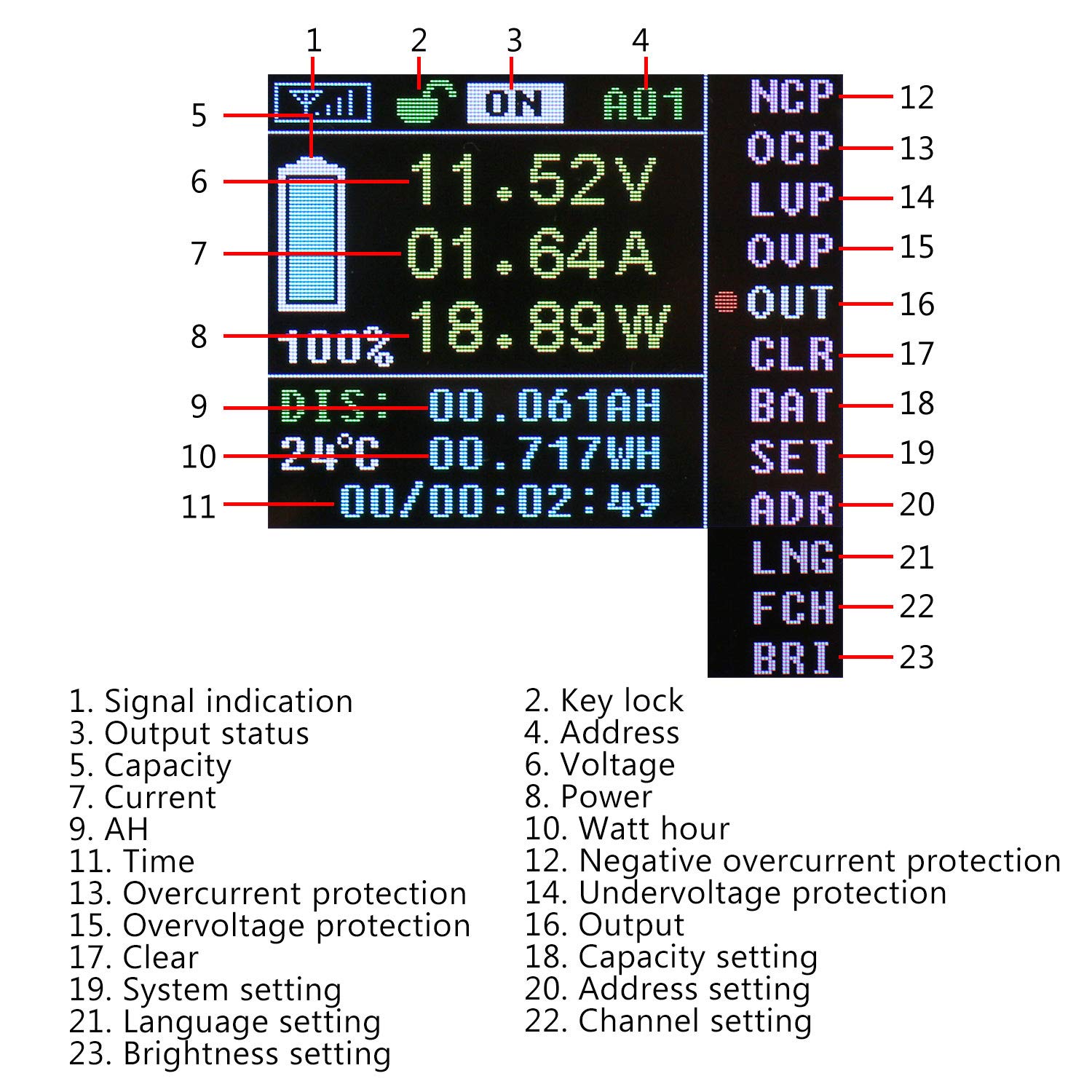

- DISPLAY --- large LCD screen displays voltage, current, time, temperature and remaining power energy. Display can be turned off and woken up by pressing any button.
- PROTECTION --- negative over-current protection; over-current protection; low-voltage protection; over-voltage protection.

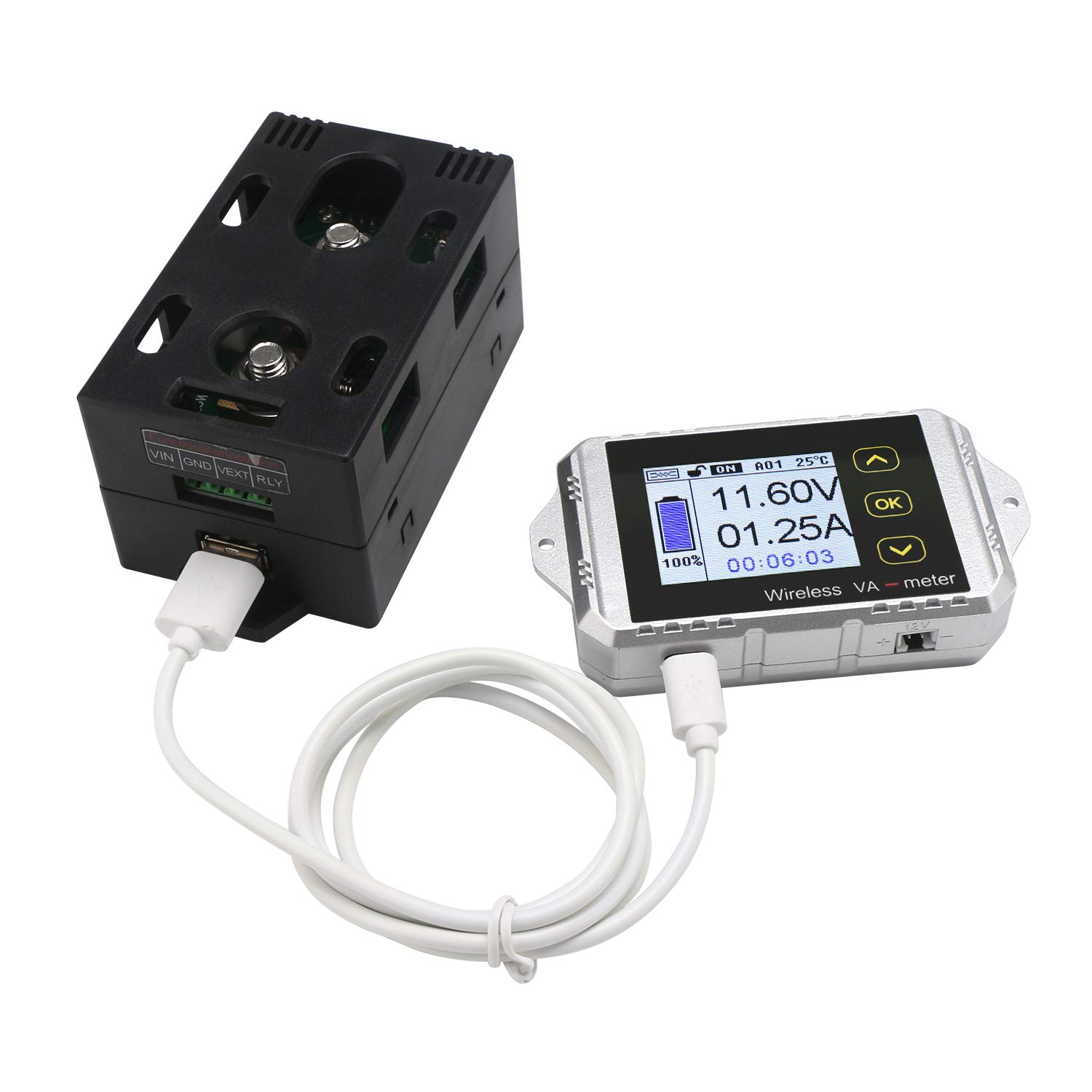

- CONNECTION --- The display panel & the measurement module can be connected by the included USB cable or wirelessly. The max distance of wireless connection is 10m.
- APPLICATION --- The measurement module can detect forward and reverse current. It can detect battery capacity of charging and discharging without changing the wiring direction. Can be applied to solar power generation, wind power generation, electromobile battery. Note: can not detect current of two directions at the same time.
- ›See more product details
Parameter: Voltage measuring range: 0~100V Voltage resolution: 0.01V Current measuring range: 0~100A Current resolution: 0.1A Temperature measurement range: -20~120 ℃ Capacity display range: 0%~100% Power measurement range: 0-200kW Power resolution: 0.001W AH measurement range: 0-2000kAH AH resolution: 0.001AH Watt-hour measurement range: 0-4000kWH Watt-hour accuracy: 0.001WH Time measurement range: 0-99days Time resolution: 1 second Communication channel range: A~Z (26 channels) Communication address range: 01~ 99 Voltage accuracy: ± 2% + 3 digits Current accuracy: ± 5% + 10 digits Sampling rate: 5 times/second Communication distance: 10m max. Relay: external relay (not equipped) Protection: NCP negative over-current protection (protection range 0-300A) OCP over-current protection (protection range 0-300A) LVP low-voltage protection (protection range 0-100V) OVP over-voltage protetcion (protection range 0-100V) Protection delay time: 0-10s Package Included: 1x Parameter Display Panel 1x Measuring Module 1x USB Cable 1x Temperature Sensor 1x 2P Cable
