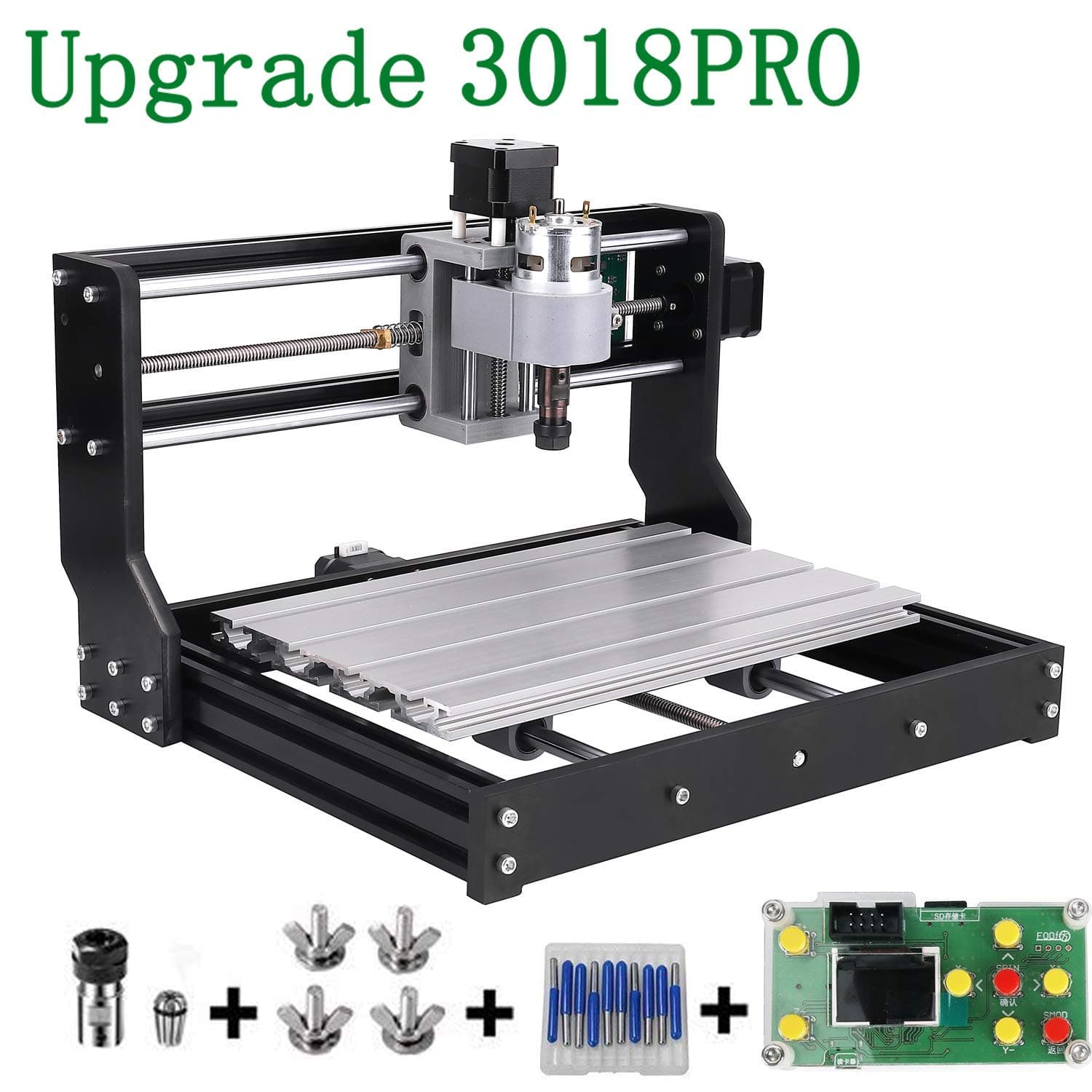

Missice Upgrade Version (Easy to Install) CNC 3018 Pro GRBL Control DIY Mini CNC Machine, 3 Axis PCB Milling Machine, Wood Router Engraver with Offline Controller, with ER11 and 5mm Extension Rod
Description
- Upgraded Version: CNC 3018-PRO is an upgraded version of 3018. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. Moreover, the base height is raised to 4cm for a better stability. CNC 3018-PRO with offline controller : The main two advantages: 1. do not need to connect the computer; 2,do not need to download files. Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan. Simple Assembly: Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack.The CNC3018 PRO machine is very easy to install , stable structure ,take only about 20 minutes to assemble.(The package will come with a DISK that includes assembly instructions and software.) Control Software: The 3018-PRO uses Grbl, with high performance and low cost, is based on parallel port motion control for CNC engraving. Working area: 30x18x4.5cm; Spindle: 775 spindle motor (12-36V) 24V:10000r / min. System: Win xp/Win7/Win8/Linux. Wide Application: Can be engraved all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, this CNC machine can be used on a wide range of projects and materials. If you have any question, please contact us and we will help you. ›See more product details
The Upgrade Version CNC 3018 Pro advantages: 1.Upgrade the board, With Manual Controller don't need to use the conner. 2.The base is upgarde from 2cm to 4cm and it will be more stable. 3.All mounting holes have been reserved ,easy to assemble. 4.The stepper moter position is fixed, do not need to adjust. Specification: Frame Dimensions: 40x33x24cm(15.7 x 13.0 x 9.4") . Working area : 30x18x4.5cm(11.8 x 7.1 x 1.8”) . Spindle: 775 motor, 12V, 3000 RPM; 24V, 7000 RPM; 36V, 9000 RPM. Softwear: GRBL controller. Power supply : 24V 5.6A adapter. Stepper motor: fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M. Supported System: Windows XP / Win 7 / Win 8 / Win 10. Drill bits: tip 0.1mm ,20 degree , diameter 3.175mm. Clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm. What are the main two advantages of the manual controller? ◆1. Do not need to connect computer. we can download the needed carving files into o-linecontroller(usb or TF card reader available). ◆2. Do not need to downlood any files. The of-line controller can control all actions, can directly do somesimple curving, such as punching, curving rectangle shape and so on. Package inclued: 1x Full set engraving machine 1x Offline controller 4x Clamps 10x Bits 1x Extension rod with ER11 collet 1x Disk(inludes ENGLISH manual and software)
Common Questions
